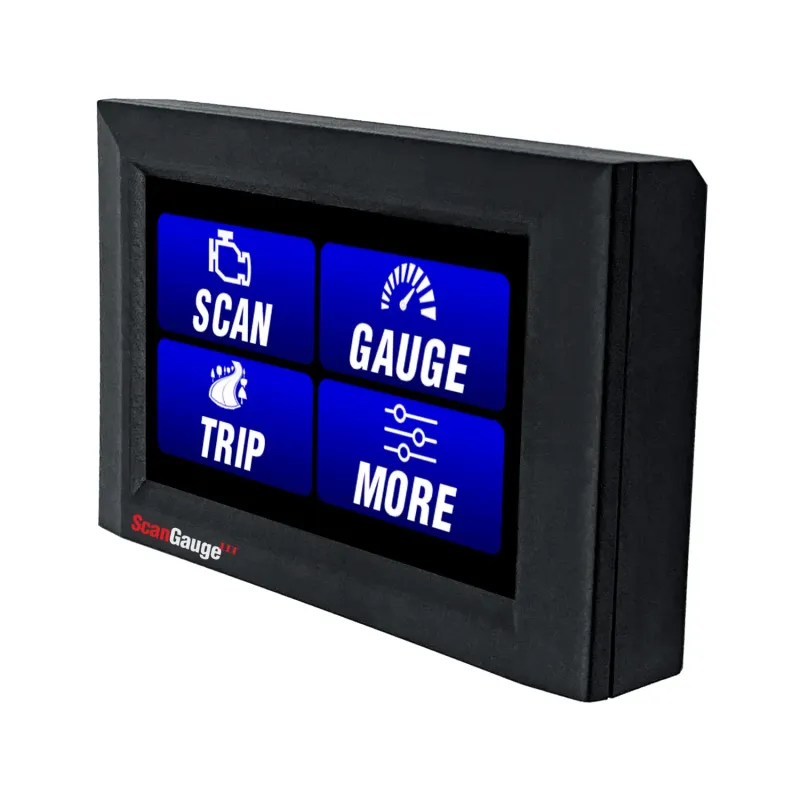

Introducing ScanGauge-3

All The Features You've Been Asking For

ScanGaugeIII can help you monitor your vehicle’s most vital systems and provide the kind of real-time information you’ve been missing. Features include built-in digital gauges, 5 sets of trip data and an easy-to-use Scan Tool that shows both set and pending trouble codes — all in an ultra compact design that installs in minutes.

The new ScanGauge-III features capacitive touch screen with over 16 million possible colours, audible and visual alarms, automatic X-Gauge configuration and configurable gauges display for up to 9 gauges on each screen saved to your preference.

OBD2 DIGITAL GAUGES

ScanGaugeIII provides real-time gauges to show you what is going on “under the hood” with built-in digital gauges. The gauge screen allows you to select and display up to 9 gauges at a time, so you can monitor the current operating conditions of your vehicle in real-time. Customise the number of gauges and pages to your preference.

Learn To Improve Your Fuel Economy With Scangauge-II

ScanGauge-III provides real-time data about your vehicle’s instant and average fuel economy, fuel used, cost of fuel used for each trip, cost per KM, Litres per hour and more!

There are many ways to reduce your fuel usage and increase fuel economy. Real time feedback like what the ScanGauge provides is one of the most effective.

Driving More Efficiently With ScanGauge Can Save Up to 33%
Removing Excess Weight and Drag can save up to 17%
Simply Observing the Speed Limit can save up to 14%
Avoiding Excessive Idling can save up to 2%

*The information available may vary depending on vehicle's make and model. If the information is not available no data will be shown for it. If the same gauge is selected for more than one position, only one of them will show data.

Gauge	Name
AVG	Average Fuel Economy
CLSD LP / OPEN LP	Fuel System Loop Status
CPM	Cost Per Mile/KM
FIA / CIA	Intake Air Temperature
FPR	Fuel Pressure
FWT / CWT	Water Temperature
GPH LPH	Gallons Per Hour Litres Per Hour
MAP BST	Manifold Absolute Pressure Boost
MPG KPG MPL LHK KPL	Miles Per Gallon Kilometers Per Gallon Miles Per Litres Liters Per 100Km Kilometeres Per Liter
MPH KPH	Miles Per Hour Kilometers Per Hour
RPM	Revolutions Per Minute
TFC	Trip Fuel Cost
TPS	Throttle Position Sensor
VLT	Battery Voltage
IGN	Ignition Timing
LOD	Engine Loading
HPR	Horsepower

Exclusive Vehicle Specific Gauge System

The ScanGauge-III features the exclusive X-GAUGE™ vehicle specific gauge system; you can monitor parameters such as transmission temperature, oil temperature, trip data and fuel economy information. X-Gauge™ gives you the ability to customise your ScanGaugeIII by adding additional vehicle specific digital gauges. The all new Auto Scan feature of the ScanGaugeIII can automatically scan your vehicle for available XGauges, look below for your vehicle to see what may be available.

Customise Display Colours

Match your instrument panel for an integrated look. ScanGauge-III display screen can be customised to any colour you want. Over 16 million possible colours available.

TRIP COMPUTERS

With five built-in trip computers, the ScanGauge can keep track of everything from fuel cost to distance traveled and everything in between. Data is stored on the ScanGauge and is retained even when the power is disconnected. Each trip computer starts automatically and information is available anytime during the trip.

Time & Distance Trip Computer	Fuel & Tank Trip Computer
ScanGauge includes three trip computers based on time and distance. They include the Current Trip, Today Trip and Previous Day Trip. Each trip computer starts automatically and tracks the following parameters:	The ScanGauge includes two trip computers based on the current tank of fuel. They include the Current Tank and Tank to Empty. Each trip computer starts automatically when you tell ScanGauge you have filled your tank.
KM/L / MPG	KML / MPG for Current Tank
Fuel Used	Fuel Used on Current Tank
Max Coolant Temperature	Tank to Empty
KMs Driven	Distance to Empty
Max RPM	Distance Until Empty
Hours Driven	Hours Driven on Current Tank
Max KPH	Hours to Empty
Average KPH	Average Speed
Fuel Cost	Fuel Used Cost

ENGINE OBD2 SCAN TOOL

The ScanGauge can check for Engine Diagnostic Trouble Codes (DTCs) and if found, can display how many there are and the Trouble Codes themselves and their meanings. Using the internet or repair manuals, these can be translated to the failed component and repairs can be made.

Reads Trouble Codes
Clears Trouble Codes
Shows Conditions When Trouble Was Detected (RPM, COOLANT, TEMP etc)
Turns Off “CHECK ENGINE” Light
Shows When Onboard Tests Have Been Completed And Vehicle Is Ready To Pass OBDII emissions Testing

GREAT FEATURES

Easy to Install No Tools Required

Installs in just minutes without tools. Simply plug the ScanGauge into the diagnostic connection under the dash.

No Batteries Required

The single connection to the diagnostic connector under the dashboard is all that is needed.

Automatic Protocol Determination

ScanGauge automatically determines the protocol your vehicle uses and connects.

6-Foot Cord and Suction Cup Windshield Mount

The ScanGauge can be mounted up to 6 feet (1.8 Meters) from the under-dash diagnostic connector. The included Suction Cup Windshield Mount allows the ScanGauge to be quickly detached and then used to troubleshoot other vehicles.

User-Friendly Capacitive Touch Display

Simple touch operation allows you quickly and easily access the powerful features of the ScanGauge. Swiping two fingers up or down will raise and lower the brightness

Colour Backlight Display

Match your instrument panel for an integrated look.

English & Metric Units

The Digital Gauges and Trip Computer information can be shown in either English or Metric units of measure, including KM’s, Litres, Celsius, and kPA.

Compact Design

Unit Dimensions 12.7 x 8.1 x 2.55 cm

PACKAGE INCLUDES

ScanGauge-3 Unit

ScanGauge cable (1.8m)

ScanGauge Window Mount
